Dynamic Strut

Made from Resilergy™️

$199 Introductory Pricing!
On Dynamic Strut Kits
*Introductory pricing can end at any time and without notice.

MicrosoftTeams-image (2).png

Side-by-Side Comparison: IDEO (Left) vs. Coyote's AFO (Right)

Untitled design (31).png

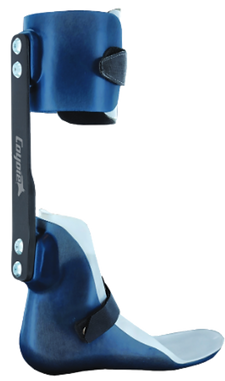

Dynamic Strut

The Mini Dynamic Strut is (10.5" x 1.25")

Our New Dynamic Strut Design combines a unique combination of strength and flex that other posterior dynamic struts do not offer. The AFO has the fit and comfort of a custom AFO with a posterior mounted dynamic strut for optimal ambulation. The strut is mounted to a custom thermoformed AFO and designed for average daily use; walking, working, hiking, biking, golf.
Has not been tested with running.

Designed to Flex

  •   Moves with the Patient

  •   Helps create a Natural Gait

  •   Works great with a thermoformed orthosis

  •   Offloads weight from the foot and ankle

  •   Provides Energy Response

Now Available

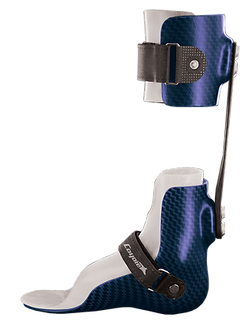

Mini Dynamic Strut

The Mini Dynamic Strut is (8.5" x 1.25")

Coyote’s Mini Dynamic Strut is made from Resilergy™ the same responsive composite material as our standard strut just a smaller size. Our struts combine a unique combination of strength and flex that other posterior dynamic struts simply do not offer. The Mini Strut was designed for smaller and patients with softer flex options available. These struts are comfortable enough for average daily use; walking, working, hiking, biking, golf.
Has not been tested with running.

  •   Designed for smaller patients

  •   Kit includes tooling and mounting

  •   Replacement struts available

CD207XS (Extra Soft Flex Kit)

Patient Weight Range: 70-150 lbs

Patient Activity Level: Light to medium activity

CD209S  (Mini Soft Flex Kit)

Patient Weight Range: 70-110 lbs

Patient Activity Level: Light to medium activity

CD207S (Soft Flex Kit)

Patient Weight Range: 90-200 lbs

Patient Activity Level: Light to medium activity

CD209M (Mini Medium Flex Kit)

Patient Weight Range: 90-130 lbs

Patient Activity Level: Light to medium activity

CD207M (Medium Flex Kit)

Patient Weight Range: 125-225 lbs

Patient Activity Level: Light to medium activity

CD209R (Mini Rigid Flex Kit)

Patient Weight Range: 110-150 lbs

Patient Activity Level: Light to medium activity

CD207R (Rigid Flex Kit)

Patient Weight Range: 200-280 lbs

Patient Activity Level: Light to medium activity

CD207XR (Extra Rigid Flex Kit)
CD209FK (Mini Fitting Kit)

For Test & Demo Purposes Only

Contains:  CD209SS, CD209MS, CD209R, demo struts, one set of mounting plates and fabrication tooling, and a set of Rotation Shims and set of Flexion Shims.

Patient Weight Range: 260-350 lbs

Patient Activity Level: Light to medium activity

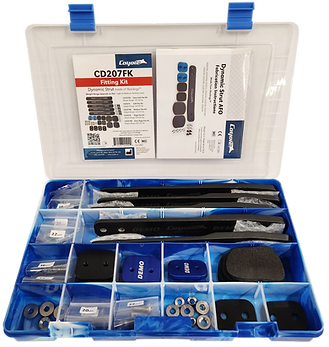

CD207FK (Fitting Kit)

For Test & Demo Purposes Only

Contains: CD207XSS, CD207SS, CD207MS, CD207R, CD207XR  demo struts, one set of mounting plates and fabrication tooling, and a set of Rotation Shims and set of Flexion Shims.

Coyote Resilergy™️

Coyote Resilergy™️ is a composite material, allowing for even more range of motion while still providing the same support as the Original Strut AFO.

There are also lower weight ranges for the Resilergy™️ due to its less rigid characteristics.

Using ProComp® in Dynamic AFOs

Coyote typically makes our dynamic strut AFOs using Curbell Plastics ProComp®. This material gives us extra dynamic response in the toe while maintaining adjustability.
Exclusive ProComp® Carbon Reinforced Polypropylene

The Strut Kit Includes

Purchase struts and tooling from Coyote, then fabricate in your own facility OR alternatively, we can make the entire custom brace for you in our Central Fabrication Lab.

Screen Shot 2022-10-11 at 2.10.19 PM.png

What comes in the Dynamic Strut package.

A. Strut (1) (10.5 x 1.5)

B. Screws (4) for Top and Bottom Mounting plate

C. Black Screws (4) for mounting Tooling Pieces

D. Clamp Washer (4)

E. AFO Mounting Plate (2)

(1) Upper Mounting Plate - Short Posts

(1) Lower Mounting Plate - Tall Posts

F. AFO Fabrication Tooling Pieces (2)

G. AFO Plate Foam (2)

Replacement Standard Struts sold separately:

CD207XSS - Extra Soft Flex Replacement Strut

CD207SS - Soft Flex Replacement Strut

CD207MS - Medium Flex Replacement Strut

CD207RS - Rigid Flex Replacement Strut

CD207XRS - Extra Rigid Flex Replacement Strut

Replacement Mini Struts sold separately:

CD209SS - Soft Flex Replacement Strut

CD209MS - Medium Flex Replacement Strut

CD209RS - Rigid Flex Replacement Strut

Fitting Kits
CD207FK - Standard Size
CD209FK - Mini Size

The Fitting Kits are available for a discounted price for test and fitting purposes only.
The demo samples are to help decide the best flex option for the patient. The Fitting Kits are for trial only and are meant to be replaced with standard product.
AFO Struts with Arrows wider.png

The strut is designed for average daily use; walking, working, hiking, biking, golfing, etc. (has not been tested with running).

Great for foot drop; the Dynamic Strut AFO also improves gait.

Over time, the strut may wear out but is easy and inexpensive to replace.

Dynamic AFO Strut

Why the Dynamic Strut AFO?

Our new Dynamic Strut design combines a unique combination of strength and flex that other posterior dynamic struts simply do not offer. The AFO combines the fit and comfort of a custom AFO with posterior mounted dynamic strut for optimal ambulation. The strut is mounted to a custom thermoformed AFO

Screen Shot 2022-10-11 at 2.08.19 PM.png
FEATURES
  • Works great with a thermoformed orthosis

  • Offloads weight from the foot and ankle

  • Helps create a natural gait

  • Provides energy response

  • Moves with the patient

  • Designed to flex

  • 6 Month Warranty

Paul, Coyote Patient

"I was here to get my foot amputated & now I'm here with my leg & I'm happy with it for the first time in almost 20 years."

"Honestly, I cannot recommend it enough...it's the greatest thing that's happened to me in a really long time & I mean that."

- Paul, Coyote Patient

Standard Codes

L1960 Ankle Foot Orthosis, Posterior Solid Ankle, Plastic Custom

L2820 Addition to Lower Extremity Orthosis, soft interface

L2340 Pre-tibial shell molded

L2755 (x3) Carbon graphite lamination - Explain where the 3 units are used: 1 for strut, 1 for calf section, and 1 for footplate if using ProComp or lamination.



Additional Features that may be applicable

L2275 Plastic mod low ext pad/line

L2340 Pre-tibial shell molded

L2275 Varus/Valgus corrective trimlines

L2280 Molded Inner Boot

L2350 Prosthetic type socket mold - Can be used if you're doing a patellar tendon bearing AFO - has to have high trim lines and a longer front calf plate.

L2999 Clear test Fit AFO

L2999 Adjustable Dial Closure system

L2999 Coyote Resilergy Strut

L2999 Coyote Resilergy Strut minor part

It is the practitioner’s responsibility to demonstrate, document, and select appropriate codes for insurance billing.

Coyote Dynamic Strut AFO L-Code Examples
