SmartPuck
Now Water-Resistant
Tested to IP28 (3 meters of water for up to 4 hours).
All new SmartPucks sold after July 1st, 2025 will be IP28 water-resistant. Look for the IP28 designation engraved on the top of the Smartpuck. All Smartpucks without the IP28 designation are not water-resistant. Smartpucks sold before July 1st, or without the IP28 designation, can be sent in for refurbishment, updating them to the new IP28 standard.
The SmartPuck is the industries first intelligent socket system with Constant Vacuum socket technology. This is cutting edge prosthetic socket technology that can actually improve the circulation and health of the residual limb.
The Most Advanced Prosthetic Socket In The World
FEATURES
-
Smart Constant Vacuum -Set and Forget
-

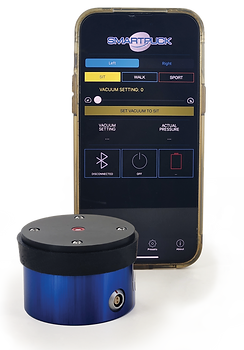

APPLE / ANDROID Smart Device Compatible
-
Easy ON/OFF Magnetic Switch
-
Negative Pressure Tank for Extended Vacuum life
-
External Charger
-
Advanced Vacuum Technology
-
Self Sealing Design
-
Light weight and Low Build Height
SPECIFICATION
-
Height: 1.88”
-
Weight: 223g
-
Diameter: 2.5”
-
Weight Limit: 300 lbs
-
Fabrication: Drop In
-
Max Vacuum: 24 In//Hg
-
Seal: Self Sealing
-
Battery Life: 2-3 Days
-
PATENT: US9119735 B2, Additional Patents Pending
LINER COMPATIBILITY
-
All Silicone and Urethane liners
Otto Bock™ Urethane, Ossur™ Dermo™ / Activa™
Evolution™, ESP™, OWW™ Silicone
Naked/ Fabric Covered Approved
(Note: Fabric Liners Must Be Reflected 3”) -
GEL or TPE Liners are not Recommended
NO SEALING LINERS
SLEEVE / SEALING LINER COMPATIBILITY
-
Use Silicone, TPE or Urethane Sealing Sleeves
Sleeves Should be a good fit and Sticky Inner surface -
No Powdered Sleeves
Sleeve Direct Contact on Socket of at Least 4”
Sleeve Direct Contact on Naked portion of Liner (4”)
No Sealing Liners
